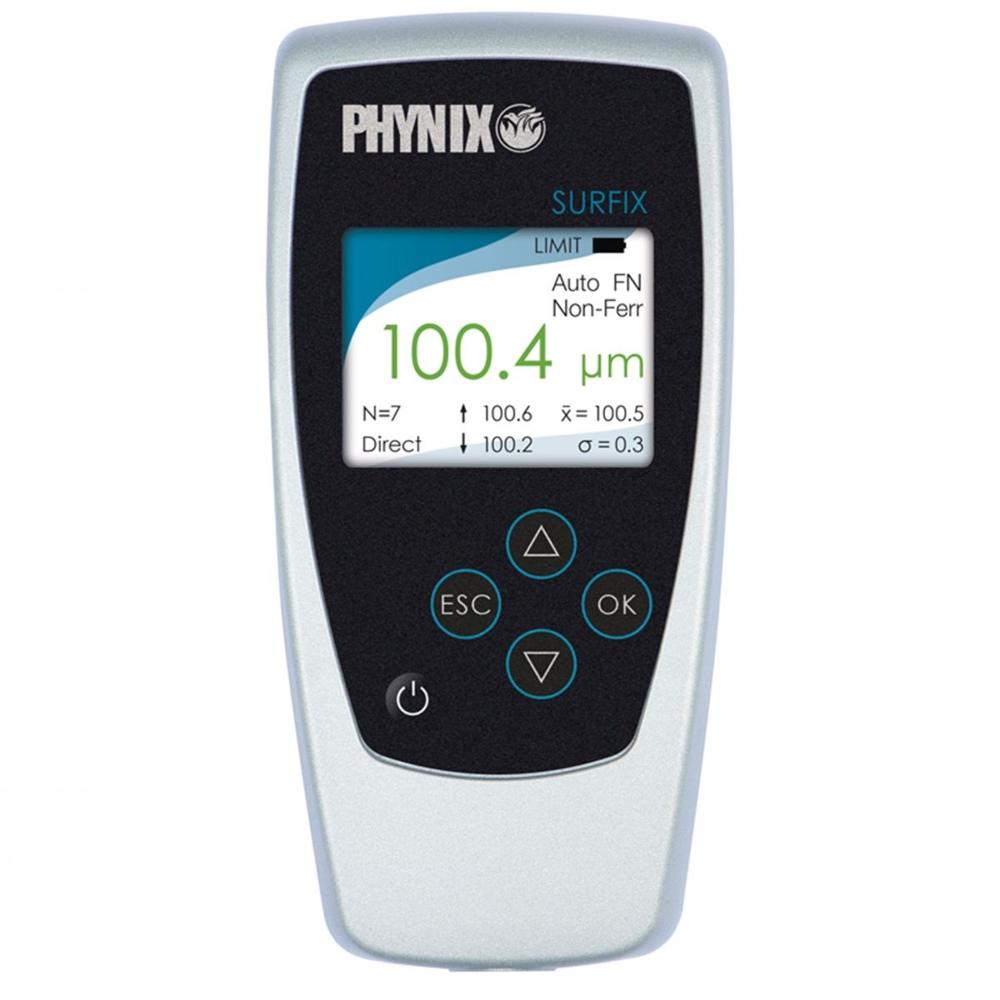

Coating Thickness Gauge SURFIX SX

Surfix SX Gauge

Gauge

Supports multiple probes

Automatically identifies substrate type and activates appropriate measuring procedure

Automatic identification of probe type used

Supports units m and mils

Memory

Data memory for 2,000 reading

Data Output

Data transfer via USB 2.0

Statistics

Number of measured values, mean value, standard deviation, minimum and maximum measured value

Calibration

works calibration, zero calibration, one-foil calibration; zero-offset

Protection class

Protection class - IP 52 (proof against dust and dripping water)

Display

High resolution Color display

Standards

DIN, ISO, ASTM, BS

Measuring Principle

Magnetic induction principle (F-Mode)

Eddy-current principle (N-Mode)

Probe FN 1.5/ (For measurement OD)

Range

0 - 1,500 m

Substrate

Ferrous (F & FN Model)

Non-Ferrous (FN & N Model)

Tolerance

(1 m + 1 % of reading)

Resolution

0.1 m or < 0.2 % of reading

Min. Area of measurement

5 mm x 5 mm

Minimum radius of curvature

Convex 1.5 mm,  Concave 20 mm

Minimum substrate thickness

Iron/Steel: 0.2 mm (F & FN Model)

Non-Ferrous 50 microns (N & FN Model)

Surface Temperature

 -15 C to 60 C

F 1.5 (For measurement OD)

Range

0 - 1,500 m

Substrate

Ferrous

Tolerance

(1 m + 1 % of reading)

Resolution

0.1 m or < 0.2 % of reading

Min. Area of measurement

5 mm x 5 mm

Minimum radius of curvature

Convex 1.5 mm,  Concave 20 mm

Minimum substrate thickness

Iron/Steel: 0.2 mm

Surface Temperature

 -15 C to 60 C

N 1.5 (For measurement OD)

Range

0 - 1,500 m

Substrate

Non-Ferrous

Tolerance

(1 m + 1 % of reading)

Resolution

0.1 m or < 0.2 % of reading

Min. Area of measurement

5 mm x 5 mm

Minimum radius of curvature

Convex 1.5 mm,  Concave 20 mm

Minimum substrate thickness

Non-Ferrous 50 microns

Surface Temperature

 -15 C to 60 C

Probe FN 3.5 (For measurement OD)

Range

0 - 3,500 m for Ferrous substrates

0 - 3,-00 m for Non-Ferrous substrates

Substrate

Ferrous and Non-Ferrous

Tolerance

(2 m + 2 % of reading)

Resolution

0 1,000 m: 1 m

1,000 2,500 m: 2 m

2,500 3,500 m: 5 m

Min. Area of measurement

10 mm x 10 mm

Minimum radius of curvature

Convex 5 mm,  Concave 50 mm

Minimum substrate thickness

Iron/Steel: 0.5 mm

Non-Ferrous 50 microns

Surface Temperature

 -15 C to 60 C

Probe FN 1.5/90 (SPECIAL PROBE FOR ID MEASUREMENT)

Range

0 1,500 m for Iron/Steel
0 1,500 m for Non-Ferrous metals

Substrate

Ferrous and Non-Ferrous

Tolerance

(1 m + 1 % of reading)

Resolution

0.1 m or < 0.2 % of reading

Min. Area of measurement

5 mm x 5 mm

Minimum radius of curvature

Convex 1.5 mm,

Concave 6 mm

Minimum thickness of substrate

Iron/Steel: 0.2 mm
Non-ferrous metals: 50 m

Surface Temperature

 -15 C to 60 C

Min ID for measurement

13 mm
