Video Measuring System

Get a Price/Quote

Product Details:

Accuracy 2.5 m
Measuring Range 200x150x150 mm (X,Y,Z)
Automation Grade Semi-automatic
Port Size USB 2.0
Test Range 0 200 mm (X/Y), 0 150 mm (Z)
Mounting Type Benchtop
Application Precision geometric measurement, dimensional inspection
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Video Measuring System Price And Quantity

Video Output HDMI/USB
Working Environment Dust free, vibration free, 15C~40C
System Compatibility Windows 7/10/11
Repeatability 2 m
Lighting LED ring light and surface illumination
Lens System Auto-zoom lens, parfocal optical system
Magnification 18x 200x
Camera Type High resolution CCD
Calibration Type Automatic/Manual calibration available
Stage Movement Precision linear guideway, manual/automatic movement
Image Capture 16-bit digital output
Data Output Format DXF, DWG, CSV, PDF, JPG
Measurement Software Smart measurement & analysis software with pattern recognition

Video Measuring System Product Specifications

Interface Type USB/RS232
Temperature 15C 40C
Frequency 50 Hz
Test Width 200 mm
Capacity Max load 30 kg
Operating Voltage 220V
Control Mode Manual / Computer Control
Response Time < 1 second
Features One-key operation, automatic edge detection, LED ring light, programmable measurement, image magnification, software assisted report
Resolution 0.001 mm
Equipment Type Video Measuring System
Number of Specimens Multiple (depends on fixture)
Machine Weight Approx. 160 kg
Specimen Size Up to 200 x 150 mm
Power Supply AC 220V, 50Hz
Humidity 85% RH
Display Type High definition color LCD display
Max Height 150 mm
Mounting Type Benchtop
Application Precision geometric measurement, dimensional inspection
Test Stroke 200 mm
Port Size USB 2.0
Test Range 0 200 mm (X/Y), 0 150 mm (Z)
Test Speed 0.1 mm/s 100 mm/s
Accuracy 2.5 m
Measuring Range 200x150x150 mm (X,Y,Z)
Automation Grade Semi-automatic
Usage Industrial measurement

Video Output HDMI/USB
Working Environment Dust free, vibration free, 15C~40C
System Compatibility Windows 7/10/11
Repeatability 2 m
Lighting LED ring light and surface illumination
Lens System Auto-zoom lens, parfocal optical system
Magnification 18x 200x
Camera Type High resolution CCD
Calibration Type Automatic/Manual calibration available
Stage Movement Precision linear guideway, manual/automatic movement
Image Capture 16-bit digital output
Data Output Format DXF, DWG, CSV, PDF, JPG
Measurement Software Smart measurement & analysis software with pattern recognition

Product Description

We are an eminent name in the market as a leading importer and supplier of high quality range of Video Measuring System (VMS(Manual). It is specifically designed for non-contact measurement and inspection of intricate features on small or large items. Available in diverse models, this provides long term accuracy and reliability. In addition, this Video Measuring System(VMS(Manual) is manufactured by using optimum quality materials under the observation of our deft experts

Features:

Noise-free operations
Robust construction
Low maintenance

Specification of Video Measuring System(2D Model):

Aluminum alloy Vision Measuring System
Manual 2D Vision Measurement Machine
Step Zoom Lens
Travel: 200 X 100 X 80 mm
Scale resolution: 0.001 mm (1 micron)
Repeatability: +/- 0.003 mm (3 microns)
Accuracy: 3 microns + (L/200 in mm)
Software: OVM MUMA
Manual control of light source with external control
Machine weight: 26 KG

MP-2D (Manual)

Granite base and stand
Laser indicator can point current measuring position accurately
Manual 2D Vision Measurement Machine
Can do height measurement with Z axis optical ruler
Can be upgraded to 3D with addition of Touch Probe
Measure range (mm): 250X150X200, 300X200X200, 400X300X200
Scale resolution: 0.001 mm (1 micron)
Accuracy: 2.5 microns + (L/200 in mm)
Programmable 4-quadrant ring surface light with the coaxial profile light
Software: OVM
Repeatability: +/- 0.002 mm (2 microns)

Video Measuring System - 3D Models

Measure range (mm): 250X150X200, 300X200X200, 400X300X200
Software: OVM
Granite base and stand
Manual 3D Vision Measurement Machine with RENISHAW touch probe
Z axis front transmission system is to operate machine easily
Scale resolution: 0.001 mm (1 micron)
Accuracy: 3 microns + (L/200 in mm)
Repeatability: +/- 0.002 mm (2 microns)
Laser indicator can point current measuring position accurately

VMP-3D (Manual):-

Laser indicator can point current measuring position accurately
Programmable 4-quadrant ring surface light with the coaxial profile light
Scale resolution: 0.001 mm (1 micron)
Granite base and stand
Manual 3D Vision Measurement Machine with RENISHAW touch probe
Measure range (mm): 250X150X200, 300X200X200, 400X300X200
Accuracy: 2.5 microns + (L/200 in mm)
Repeatability: +/- 0.002 mm (2 microns)
Software: OVM

COMPARISON:-

	(2D Model)	MP-2D (Manual)	3D Models	VMP-3D (Manual)
Measuring System	Aluminum alloy	Granite base	Granite base	Granite base and stand
Machine type	Manual 2D	Manual 2D	Manual 3D Vision	Manual 3D Vision Measurement Machine with RENISHAW touch probe
Lens	Step Zoom Lens	Step Zoom Lens	Step Zoom Lens	Step Zoom Lens
Travel	200 X 100 X 80 mm	200 X 100 X 80 mm	200 X 100 X 80 mm	200 X 100 X 80 mm
Scale resolution:	0.001 mm (1 micron)	0.001 mm (1 micron)	0.001 mm (1 micron)	0.001 mm (1 micron)
Repeatability	+/- 0.003 mm (3 microns)	+/- 0.002 mm (2 microns)	+/- 0.002 mm (2 microns)	+/- 0.002 mm (2 microns)
Accuracy	3 microns + (L/200 in mm)	2.5 microns + (L/200 in mm)	3 microns + (L/200 in mm)	2.5 microns + (L/200 in mm)
Software	OVM MUMA	OVM	OVM	OVM
Machine weight:	26 KG	26 KG	26 KG	26 KG
Measure range (mm):		250X150X200, 300X200X200, 400X300X200	250X150X200, 300X200X200, 400X300X200	250X150X200, 300X200X200, 400X300X200
Upgraded Option		Can be upgraded to 3D

Advanced Optical Measurement Technology

Equipped with a high-resolution CCD camera and auto-zoom parfocal lens system, this Video Measuring System delivers precise, repeatable measurements. The LED ring lighting and surface illumination minimize shadows and enhance image clarity, supporting accurate edge detection and feature recognition essential for intricate part inspection.

User-Friendly Software Integration

The system boasts smart measurement and analysis software with intuitive pattern recognition. Automated or manual calibration options allow for flexibility, while image capture and export functions (DXF, DWG, CSV, PDF, JPG) streamline documentation and reporting. One-key operation and programmable measurement features accelerate workflow in industrial environments.

Robust Performance and Versatility

With a measuring range of 200x150x150 mm (X, Y, Z), test range up to 200 mm (X/Y), and load capacity of up to 30 kg, this machine accommodates a wide variety of specimen sizes. Precision linear guideways ensure low-friction, high-repeatability motioncritical in dust and vibration-free workspaces between 15C and 40C.

FAQs of Video Measuring System:

Q: How does the auto-zoom lens improve measurement accuracy?

A: The auto-zoom, parfocal optical lens maintains consistent focus while changing magnification, ensuring sharp images at every zoom level. This stability enhances measurement precision and ensures high repeatability, which is vital for detailed dimensional analysis.

Q: What types of components can be measured with this system?

A: The system is suitable for measuring a variety of precision industrial parts up to 200 x 150 mm in size. Its high accuracy and multiple fixture compatibility make it ideal for inspecting intricate mechanical, electronic, and manufactured components.

Q: Where is the Video Measuring System best installed?

A: For optimal results, it should be placed in a dust-free, vibration-free environment maintained between 15C and 40C and humidity 85% RH. These conditions preserve instrumentation integrity and ensure highly reliable measurement outcomes.

Q: What is the process for automatic edge detection?

A: The integrated measurement software leverages pattern recognition and advanced image processing to identify and measure edges automatically. This reduces operator error, speeds up inspection, and produces consistent, reliable results.

Q: When should calibration be performed on the machine?

A: Calibration is recommended whenever the system is relocated, after major maintenance, or at regular intervals to ensure ongoing accuracy. Both automatic and manual calibration options are available for user convenience and assurance.

Q: How does the system benefit industrial inspection processes?

A: The system enables rapid, precise measurements and automated reporting, reducing inspection time and minimizing operator-dependent errors. Its programmable, semi-automatic features and fast response (<1s) facilitate high-throughput quality control in production environments.

Q: What are the data output and connectivity options?

A: Measurement data can be saved in a variety of formats such as DXF, DWG, CSV, PDF, and JPG. For connectivity, the system supports HDMI and USB video output, with USB 2.0 and RS232 data interfaces, ensuring smooth workflow integration with common industrial systems and Windows 7/10/11 platforms.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Testing and Measuring Equipment' category

3D Ordianate Measuring Machine Usage : Industrial Metrology Power Supply : 220V/50Hz Application : Precision 3D measurement and inspection Control Mode : CNC/Manual Machine Weight : 850 kg Humidity : 4070% RH Mounting Type : Floor Mounted Test Speed : 0400 mm/s Test Range : 600 x 600 x 400 mm Temperature : 1825C Features : Highprecision, robust construction, easytouse software Number of Specimens : 1 Display Type : LCD Digital Display Test Stroke : 600 mm Port Size : USB/RS232 Accuracy : 2.0 m Measuring Range : 600 x 600 x 400 mm Automation Grade : Automatic Test Width : 600 mm Capacity : 200 kg Response Time : 1 second Resolution : 0.001 mm Equipment Type : 3D Ordinate Measuring Machine Specimen Size : Max 600 x 600 mm Max Height : 400 mm Gas Pressure : 0.50.8 MPa Interface Type : USB, RS232 Operating Voltage : 220V

Send Inquiry

Handheld XRF Machine Niton XL2 100G Usage : Field and laboratory elemental analysis Power Supply : Rechargeable lithiumion battery / AC adapter Application : Metal alloy identification, mining, scrap sorting, environmental analysis, RoHS screening Control Mode : Handheld, trigger operated Machine Weight : 1.5 kg (including battery) Humidity : Maximum 90% noncondensing Mounting Type : Handheld (pistol grip) Test Speed : Few seconds per analysis Test Range : MgU depending on calibration Temperature : 10C to +50C operating Features : Integrated camera, GPS, fast analysis, field portable, rugged design, realtime results Number of Specimens : Single specimen at a time Display Type : Color LCD display Port Size : 8 mm (sample window) Accuracy : Application and element dependent, typically within 12% for major elements Measuring Range : Elements from Magnesium (Mg) to Uranium (U) Automation Grade : Manual Test Width : N/A (spot size approx. 8 mm) Capacity : Unlimited tests per charge (Battery: >8 hours operation) Response Time : 120 seconds (depending on material and desired accuracy) Resolution : <145 eV (Mn K) Equipment Type : Handheld XRF Analyzer Specimen Size : No minimum; sample window approx. 8 mm Gas Pressure : Ambient, no external gas required Interface Type : USB, Bluetooth Operating Voltage : 7.4 V (battery)

Send Inquiry

Surface Roughness Testers Minimum Order Quantity : 1 Usage : measurement Power Supply : 230v Application : metrology Control Mode : Automatic Machine Weight : 75 Kilograms (kg) Humidity : 95 Test Speed : variable Test Range : NA Temperature : upto 40 degrees Celsius (oC) Number of Specimens : 2 Test Stroke : NA Port Size : NA Product Type : metrological equipment Capacity : n Pcs/min Weight : 75 Kilograms (kg) Operate Method : CNC Material : diamond stylus

Send Inquiry

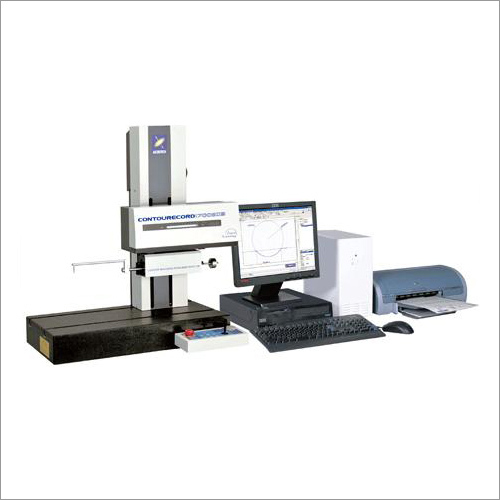

Contour Testers Usage : Industrial Measurement Power Supply : Not Required (Manual) Application : 3D Measurement; Profile & Contour Analysis Control Mode : Manual Machine Weight : Approx. 12 kg Humidity : 5% to 90% RH (NonCondensing) Mounting Type : Bench Top Test Speed : Manual Operation Test Range : 0150 mm Temperature : 10C to 40C Features : Portable, Corrosion Resistant, Durable Number of Specimens : Single Specimen Display Type : Analog Scale Test Stroke : 110 mm Accuracy : 0.02 mm Measuring Range : 0150 mm Automation Grade : Manual Test Width : Up to 150 mm Response Time : Instantaneous (Manual) Resolution : 0.01 mm Equipment Type : Contour Tester Specimen Size : Max 150 mm Width Max Height : 110 mm
