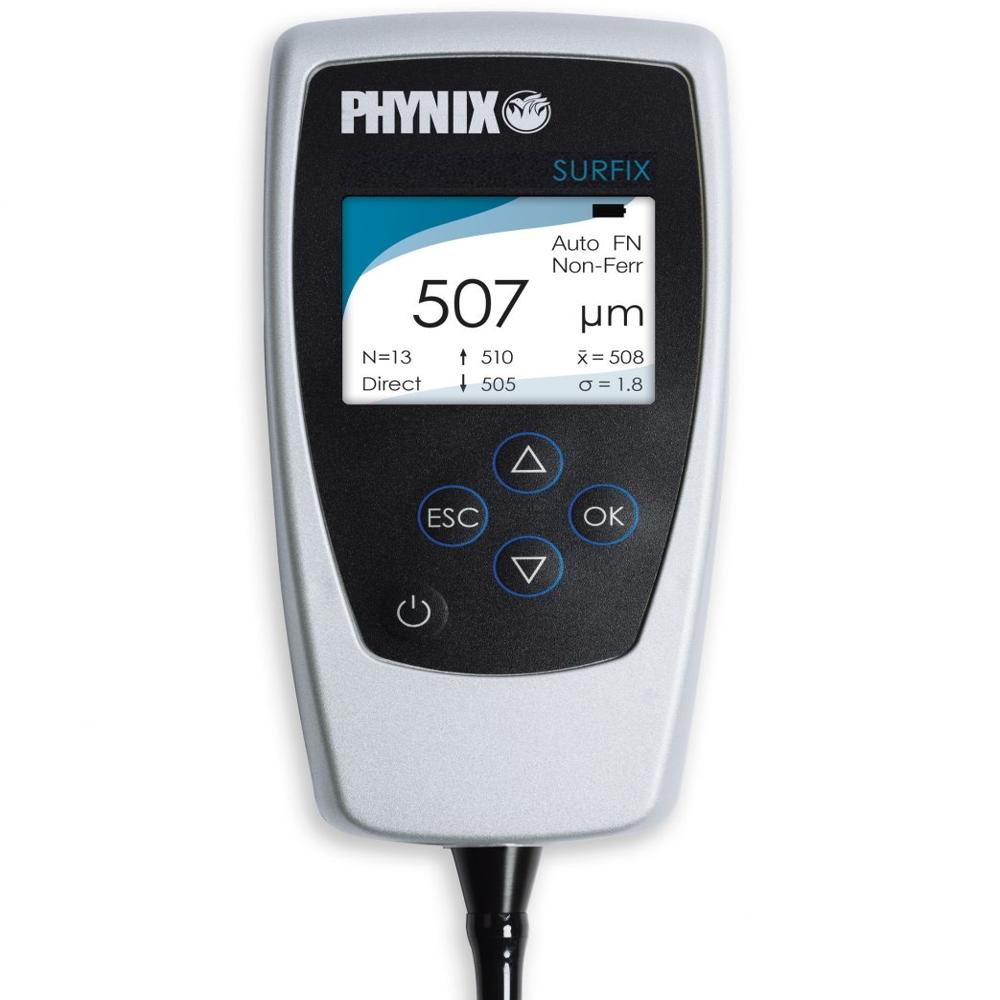

Coating Thickness Gauge SURFIX EX N Basic
68876.0 INR/Number
Product Details:
- Sensor Type Integrated N (Magnetic Induction) Sensor
- Measuring Range 0-2000 m (0-80 mils)
- Outer Size 142 60 28 mm
- Display LCD, backlit
- Case ABS plastic housing
- Material ABS plastic body
- Grade Basic
- Click to View more
X
Coating Thickness Gauge SURFIX EX N Basic Price And Quantity
- 68876.0 INR/Number
- 1 Number
- Approx. 175 g (including batteries)
- Yes
- Single and two-point calibration
- 20 mm x 20 mm
- 2 x 1.5V AA batteries
- m / mils (selectable)
- Convex: 1.5 mm / Concave: 25 mm
- 0.1 m (0-99.9 m), 1 m (100-1999 m)
- 0.5 mm
- 0C to 50C
- -10C to +60C
- Yes (on uncoated substrate)
- Yes
Coating Thickness Gauge SURFIX EX N Basic Product Specifications
- ABS plastic body
- 142 60 28 mm
- 2 m (0-100 m); 2% of reading (>100 m)
- Non-destructive coating thickness measurement on steel substrates
- Integrated N (Magnetic Induction) Sensor
- 0-2000 m (0-80 mils)
- Basic
- LCD, backlit
- ABS plastic housing
- Approx. 175 g (including batteries)
- Yes
- Single and two-point calibration
- 20 mm x 20 mm
- 2 x 1.5V AA batteries
- m / mils (selectable)
- Convex: 1.5 mm / Concave: 25 mm
- 0.1 m (0-99.9 m), 1 m (100-1999 m)
- 0.5 mm
- 0C to 50C
- -10C to +60C
- Yes (on uncoated substrate)
- Yes
Coating Thickness Gauge SURFIX EX N Basic Trade Information
- 100 Number Per Month
- 7 Days
Product Description
|
Model |
Surfix EX-N Basic |
|
Range |
0 1500 m |
|
Accuracy |
(1 m + 1% of reading) |
|
Resolution |
0.1m or < 0.2 % of reading |
|
Statistics |
Number of measured values, mean value, standard deviation, minimum and maximum measured value |
|
Memory |
NOT AVAILABLE in Basic series |
|
Data transfer |
NOT AVAILABLE in Basic series |
|
Display |
High-resolution Colour display |
|
Min radius for convex surface |
1.5 mm |
|
Min radius for concave surface |
5 mm |
|
Min measuring area |
5 mm X 5 mm |
|
Minimum Substrate Thickness |
Non-Ferrous 50 m |
|
Standards |
DIN, ISO, ASTM, BS |
|
Calibration |
works calibration, zero calibration, one-foil calibration; zero-offset |
|
Protection Class |
IP 52 (proof against dust and dripping water) |
|
Dimensions |
137mm x 66mm x 23mm |
|
Warranty |
1 Years |

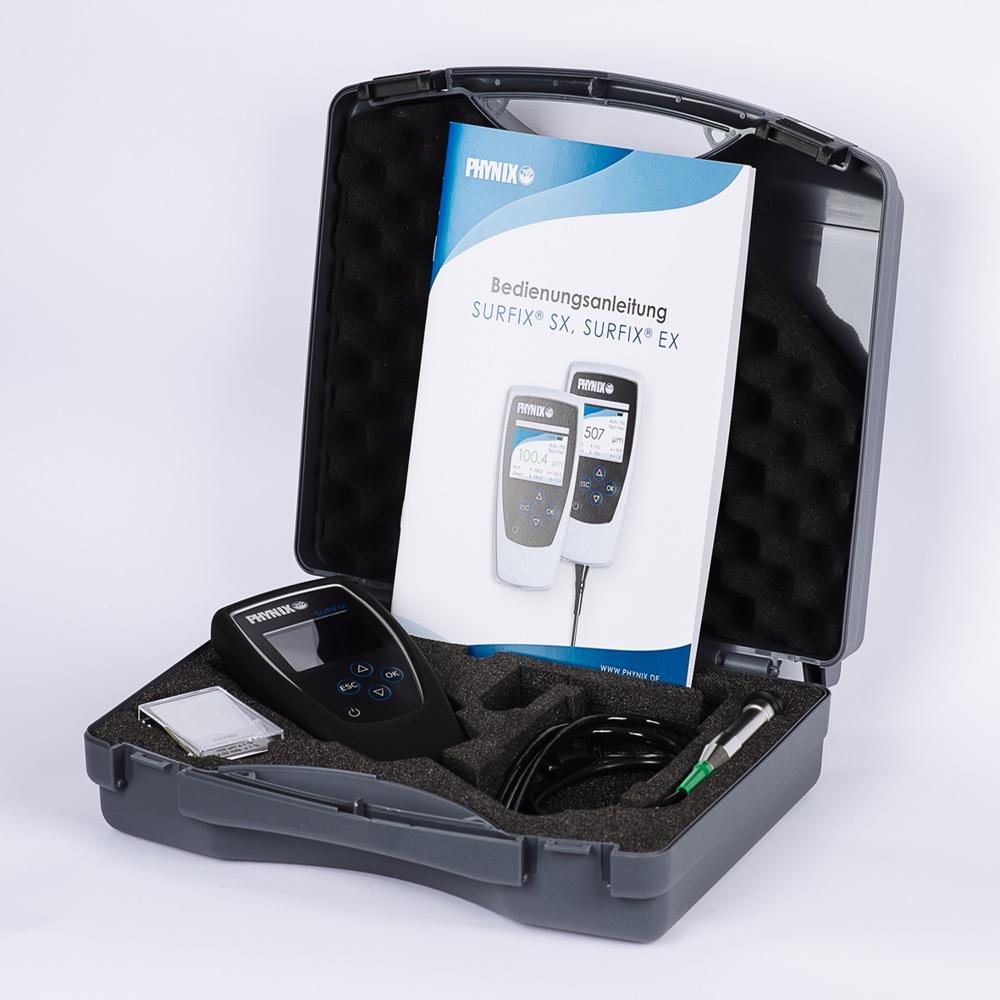

Scope of Supply includes
- Gauge with probe
- Protective rubber-cover
- Carrying case
- 2 batteries (Not included for Air shipment)
- Instruction manual
- Factory certificate
- Non-Ferrous Zero plate
- 2 Calibration foils
Precision Measurement Technology
The SURFIX EX N Basic utilizes an advanced integrated N-type magnetic induction sensor, ensuring highly accurate and repeatable measurements for coatings on ferrous substrates. With selectable resolution and units, it caters to both detailed and general inspection needs in manufacturing or quality control environments.
User-Friendly Operation and Versatility
This gauge offers intuitive calibration with single and two-point options as well as zero adjustment for accurate baseline readings. Its lightweight design, easy-to-read backlit LCD, and convenient data hold feature make it practical for on-site inspections. Automatic power-off conserves battery life, while robust ABS construction ensures long-term durability.
FAQ's of Coating Thickness Gauge SURFIX EX N Basic:
Q: How do I calibrate the SURFIX EX N Basic Coating Thickness Gauge?
A: The gauge allows for both single and two-point calibration. You can perform calibration by following the on-screen prompts; simply place the device on standard calibration foils or uncoated substrate as required, ensuring accuracy across measurement ranges.Q: What types of coatings and substrates can I measure with this device?
A: The SURFIX EX N Basic is specifically designed to measure non-destructive coating thickness on ferrous (steel) substrates, making it ideal for paints, enamels, or other coatings on steel surfaces.Q: When is zero adjustment necessary, and how is it performed?
A: Zero adjustment is recommended during initial use or when changing substrates. Place the gauge on an uncoated steel substrate and follow the device instructions for zeroing to eliminate offset and ensure measurement precision.Q: Where can the gauge be effectively used, considering environmental conditions?
A: The gauge operates reliably in temperatures from 0C to 50C and can be stored between -10C and +60C, making it suitable for factory floors, field inspections, or quality control labs throughout India.Q: What are the benefits of the data hold and auto power off features?
A: The data hold function allows you to freeze readings on the LCD, making it easier to record measurements, especially in hard-to-reach areas. Auto power off conserves battery life, extending operational time in the field.Q: How do I switch between measurement units (m and mils)?
A: You can select your preferred unit of measurement by accessing the settings menu on the gauge. This flexibility accommodates users working with different standards or regional preferences.Tell us about your requirement
