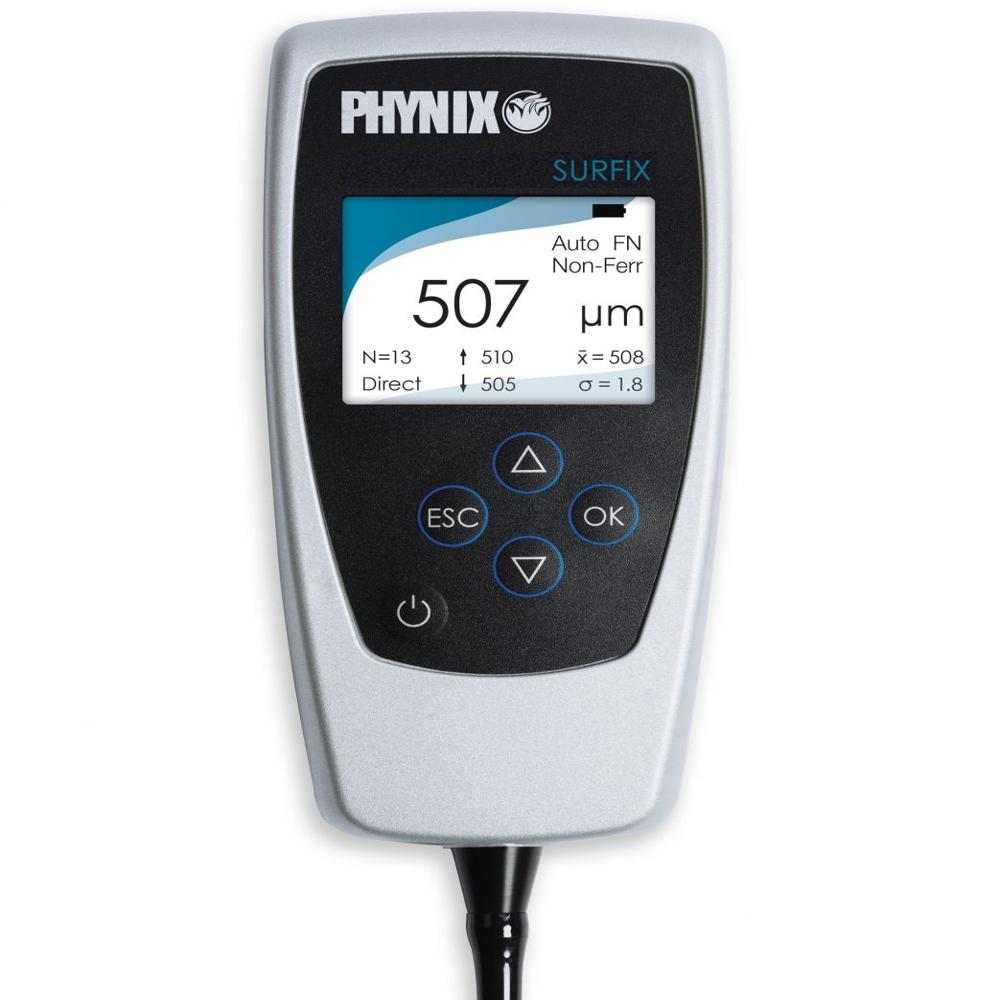

Coating Thickness Gauge SURFIX F Basic
68876.0 INR/Piece
Product Details:
- Sensor Type Magnetic induction probe (F) for ferrous substrates
- Case Robust plastic carrying case
- Display Large backlit LCD display
- Measuring Range 0-2000 m
- Outer Size 140 x 70 x 30 mm (approx.)
- Material ABS plastic housing
- Grade Basic
- Click to View more
X
Coating Thickness Gauge SURFIX F Basic Price And Quantity
- 1 Piece
- 68876.0 INR/Piece
- Convex: 1.5 mm, Concave: 25 mm
- -10C to 60C
- No data interface (Basic model)
- Single and two-point calibration
- m, mm, mils (switchable)
- 0C to 50C
- 0.1 m up to 99.9 m / 1 m above 100 m
- Magnetic: 0.2 mm
- 2 x 1.5V AA batteries
- Approx. 200 g (including batteries)
- Yes, for extended battery life
Coating Thickness Gauge SURFIX F Basic Product Specifications
- 0-2000 m
- Robust plastic carrying case
- Large backlit LCD display
- 2 m or 2% of reading (whichever is greater)
- Measurement of coating thickness on ferrous metals
- 140 x 70 x 30 mm (approx.)
- ABS plastic housing
- Magnetic induction probe (F) for ferrous substrates
- Basic
- Convex: 1.5 mm, Concave: 25 mm
- -10C to 60C
- No data interface (Basic model)
- Single and two-point calibration
- m, mm, mils (switchable)
- 0C to 50C
- 0.1 m up to 99.9 m / 1 m above 100 m
- Magnetic: 0.2 mm
- 2 x 1.5V AA batteries
- Approx. 200 g (including batteries)
- Yes, for extended battery life
Coating Thickness Gauge SURFIX F Basic Trade Information
- 10 Piece Per Month
- 7 Days
Product Description
|
Model |
Surfix EX-F Basic |
|
Range |
0 1500 m |
|
Accuracy |
(1 m + 1% of reading) |
|
Resolution |
0.1m or < 0.2 % of reading |
|
Statistics |
Number of measured values, mean value, standard deviation, minimum and maximum measured value |
|
Memory |
NOT AVAILABLE in Basic series |
|
Data transfer |
NOT AVAILABLE in Basic series |
|
Display |
High-resolution Colour display |
|
Min radius for convex surface |
1.5 mm |
|
Min radius for concave surface |
5 mm |
|
Min measuring area |
5 mm X 5 mm |
|
Minimum Substrate Thickness |
Ferrous 0.2 mm |
|
Standards |
DIN, ISO, ASTM, BS |
|
Calibration |
works calibration, zero calibration, one-foil calibration; zero-offset |
|
Protection Class |
IP 52 (proof against dust and dripping water) |
|
Dimensions |
137mm x 66mm x 23mm |
|
Warranty |
1 Years |

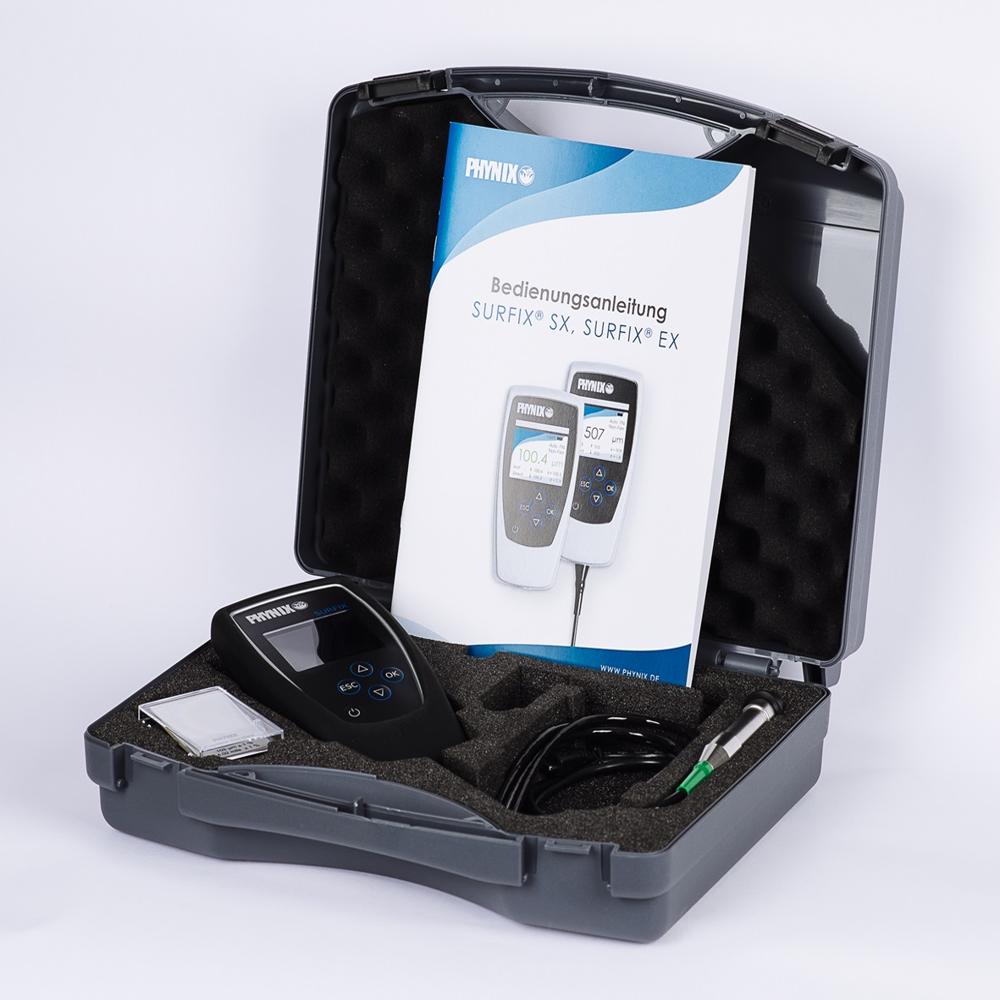

Scope of Supply includes
- Gauge with probe
- Protective rubber-cover
- Carrying case
- 2 batteries (Not included for Air shipment)
- Instruction manual
- Factory certificate
- Ferrous Zero plate
- 2 Calibration foils
High-Precision Measurement with User-Focused Design
The SURFIX F Basic delivers precise coating thickness readings on ferrous substrates using an advanced magnetic induction probe. Its large, backlit LCD makes results easy to interpret even in low-light environments. The device is encased in a tough plastic housing and comes with a sturdy carrying case, ensuring longevity and convenience during frequent use. With minimum curvature radius requirements and flexible calibration options, this gauge supports a wide array of quality control tasks in manufacturing and maintenance applications.
Effortless Operation and Maintenance
Designed for simplicity, the SURFIX F Basic runs on two standard AA batteries and features an automatic power-off function to extend operational life. Calibration is straightforward, with both single and two-point options available, ensuring accurate results. Even first-time users can quickly master its settings and interpretation, while the lack of a data output interface streamlines the focus onto reliable direct readings. The gauge's robust construction allows for safe storage from -10C to 60C, making it suitable for diverse environments.
FAQ's of Coating Thickness Gauge SURFIX F Basic:
Q: How do I calibrate the SURFIX F Basic Coating Thickness Gauge for accurate readings?
A: The SURFIX F Basic supports both single and two-point calibration methods. To calibrate, follow the device instructions to place the probe on uncoated and coated reference standards, ensuring the most precise results across different metals and coating types.Q: What types of coatings and substrates can the SURFIX F Basic measure?
A: This gauge is specifically designed for measuring the thickness of coatings on ferrous (magnetic) metal substrates, such as steel. The magnetic induction probe ensures compatibility with ferrous surfaces, making it ideal for applications like paint, plating, or other non-magnetic coatings.Q: When should I use single-point versus two-point calibration?
A: Use single-point calibration for standard measurements where the coating is uniform. Opt for two-point calibration when measuring coatings that vary in type or thickness or when working in environments that demand the highest accuracy and control over measurement conditions.Q: Where is the SURFIX F Basic commonly utilized in India?
A: The gauge is widely used in industrial, automotive, fabrication, and maintenance sectors for quality assurance and control. Distributors, manufacturers, and suppliers across India deploy it to verify coating integrity, ensuring products meet industry standards.Q: What is the process for switching display units on this device?
A: You can select your preferred measurement units-microns (m), millimeters (mm), or mils-through the simple interface. Refer to the user manual for precise button sequences to toggle between units, adapting to regional or industry standards as needed.Q: How does the auto-off function benefit users?
A: The auto-off function helps conserve battery life by automatically powering down the gauge after periods of inactivity. This extends the longevity of the two AA batteries, ensuring the device is ready for use when needed and reducing maintenance costs.Q: What are the usage limitations regarding substrate curvature and thickness?
A: The SURFIX F Basic performs optimally on convex surfaces with a minimum radius of 1.5 mm and concave surfaces with a minimum of 25 mm. The substrate (ferrous metal) must be at least 0.2 mm thick for accurate measurement, ensuring versatility for most industrial surfaces.Tell us about your requirement
